Auto-Darkening Filter for Welding Helmet WELDING - Spare Part

Auto-Darkening Filter for Welding Helmet - Spare Part SIXTOL

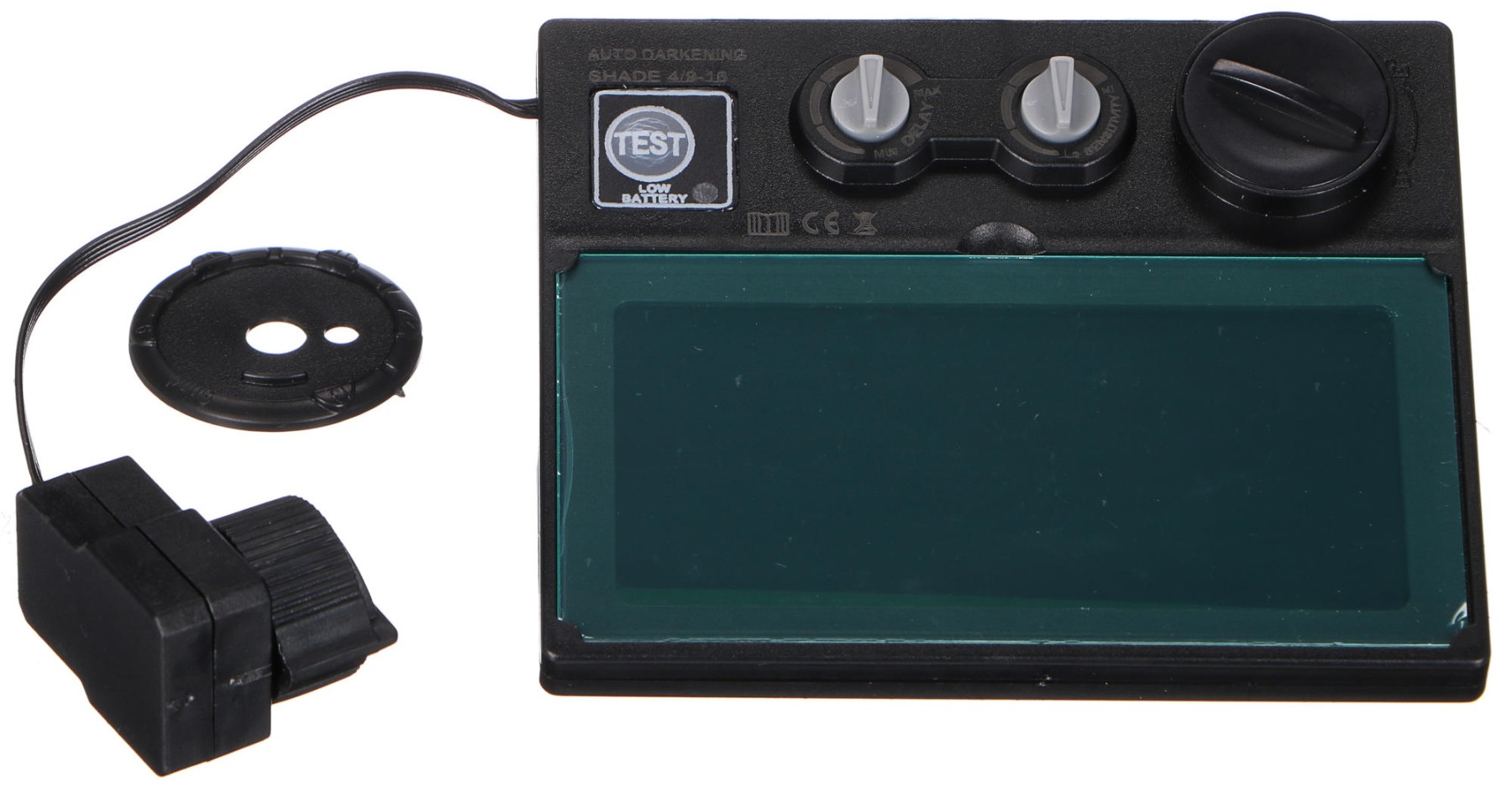

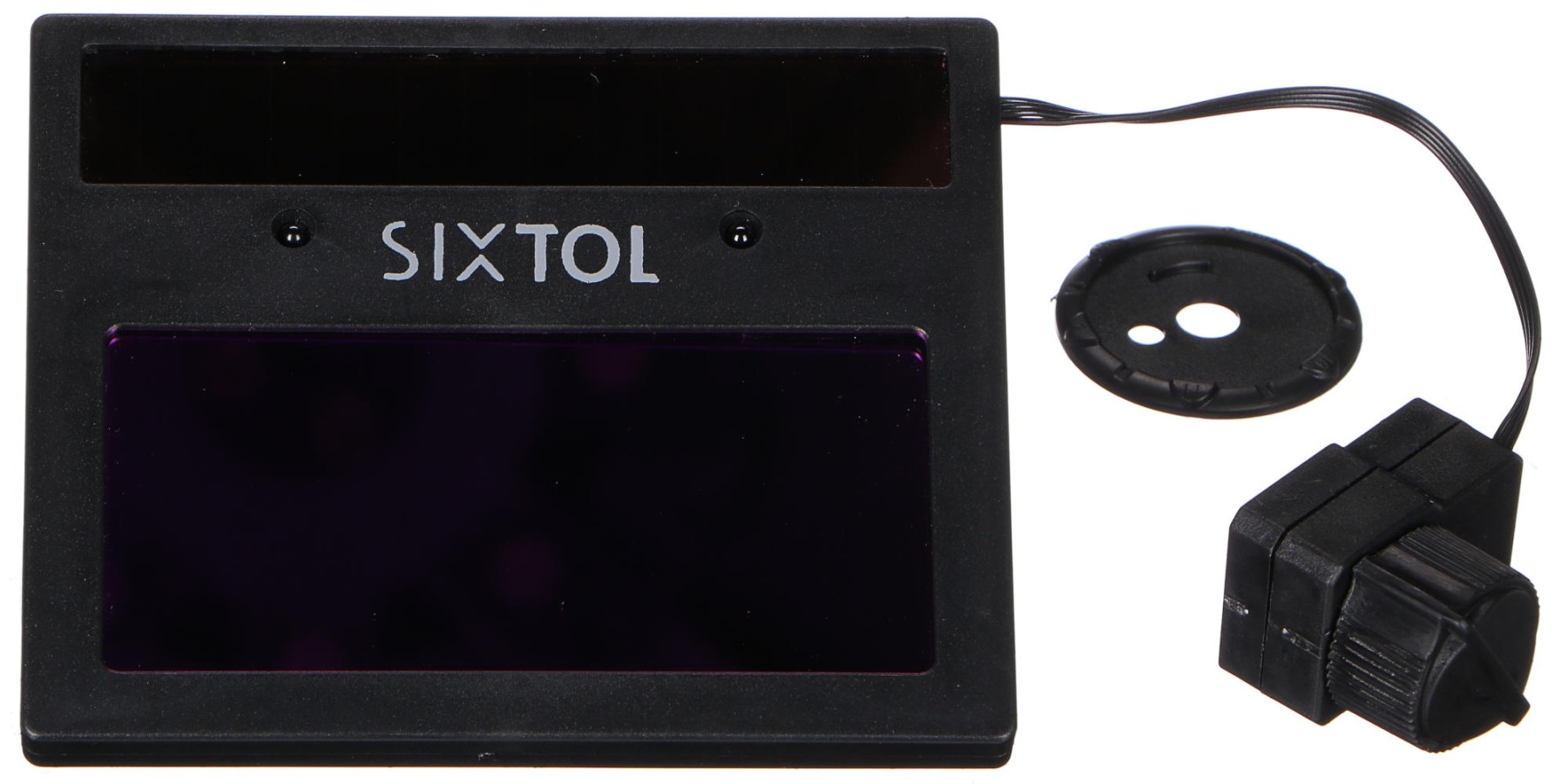

Replacement filter for the auto-darkening welding helmet SIXTOL WELDING MASK. It is a certified auto-darkening filter that protects the eyes during work. The filter's darkening intensity can be adjusted depending on the type of task and exposure. After completing the work, the filter returns to its original brightness. The filter includes an adjustment dial to adjust the shade between 9-13 (DIN9 to DIN13) or to set it to a grinding (Grind) mode. The filter is powered by solar cells and two backup replaceable 3V lithium batteries (CR2032), which are included in the package. The filter is suitable for the following tasks: arc welding ARC, TIG, MIG, Spot, Micro, Wire, AC, DC, and plasma cutting.

Applications:

• SX3043 - Auto-Darkening Welding Helmet WELDING MASK 1, Black
• SX3044 - Auto-Darkening Welding Helmet WELDING MASK 2, Red

Package Contents:

• 1x Replacement filter for welding helmet

Technical Specifications:

• Filter size: 110 × 90 × 9 mm
• Viewing area: 92 × 42 mm
• Light state: DIN 4
• Dark state: DIN 9 - 13
• Darkening speed: 1/25000 s
• Delay time: 0.2 - 0.8 s (adjustable)
• Power source: Solar cells + two replaceable 3V lithium batteries CR2032
• On/off: Fully automatic
• Darkening: Externally adjustable
• Sensors: 2
• Sensitivity: Adjustable 9-13 / Grinding
• Weight: 450 g
• Operating temperature: -5°C~55°C
• UV/IR protection: DIN16
• Optical class: 1/1/1/2
• Suitable for: ARC, TIG, MIG, Spot, Micro, Wire, AC, DC welding, plasma cutting
• Certifications: EN 166, EN 175, EN 379
