Tow-ball mounted bike carrier BIKE 3 - 3 bikes

Tow-ball mounted bike carrier BIKE 3 - 3 bikes SIXTOL

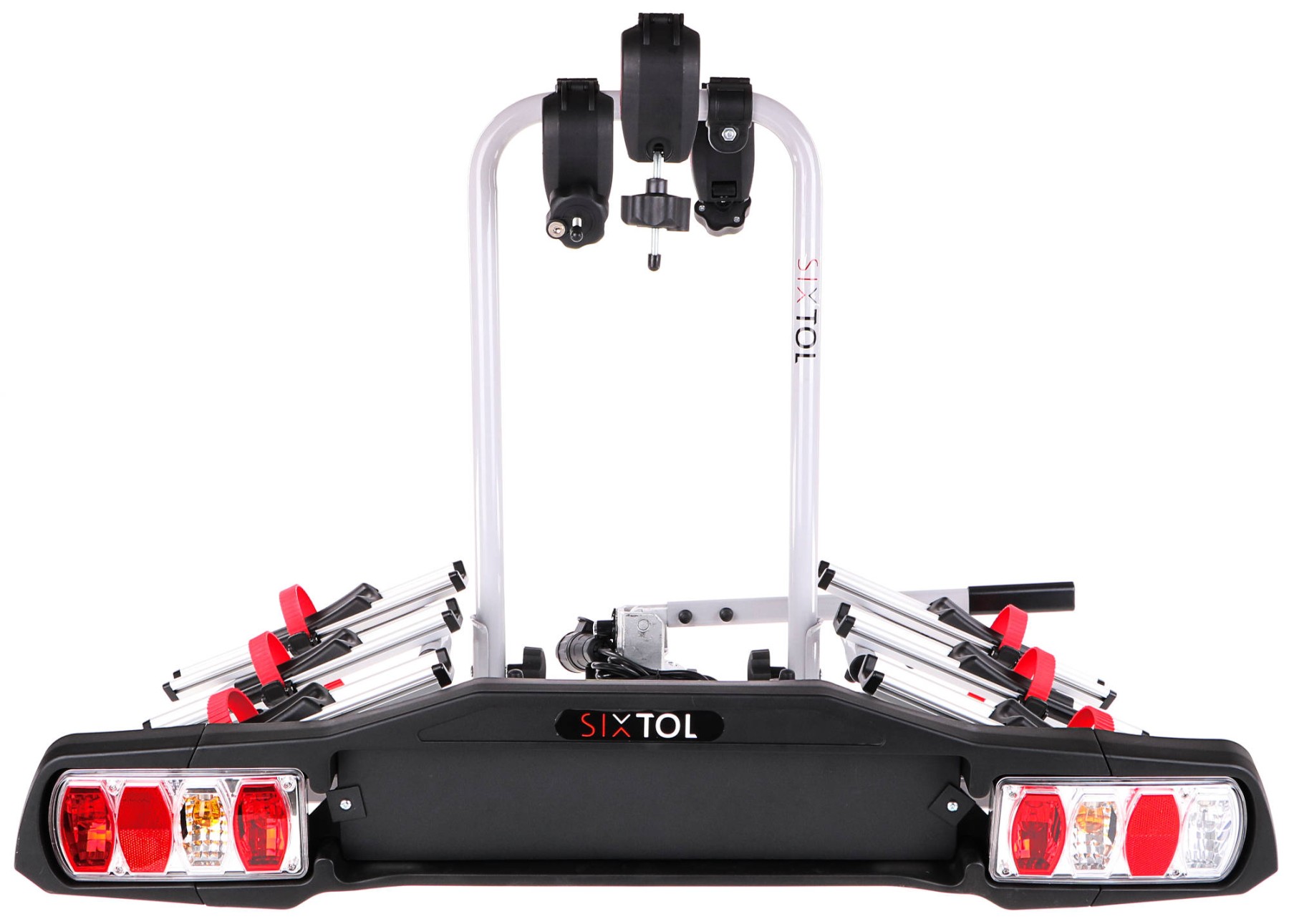

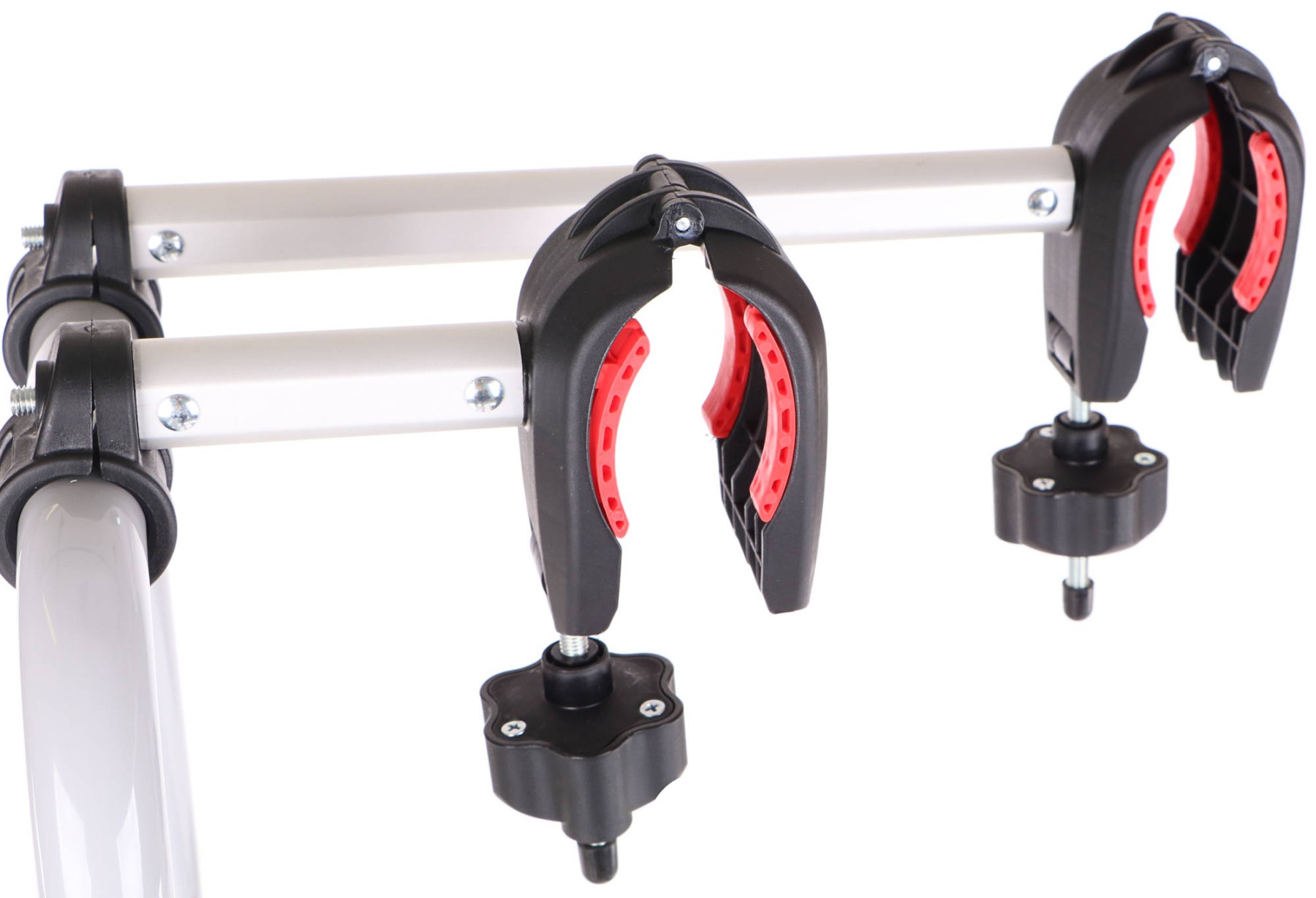

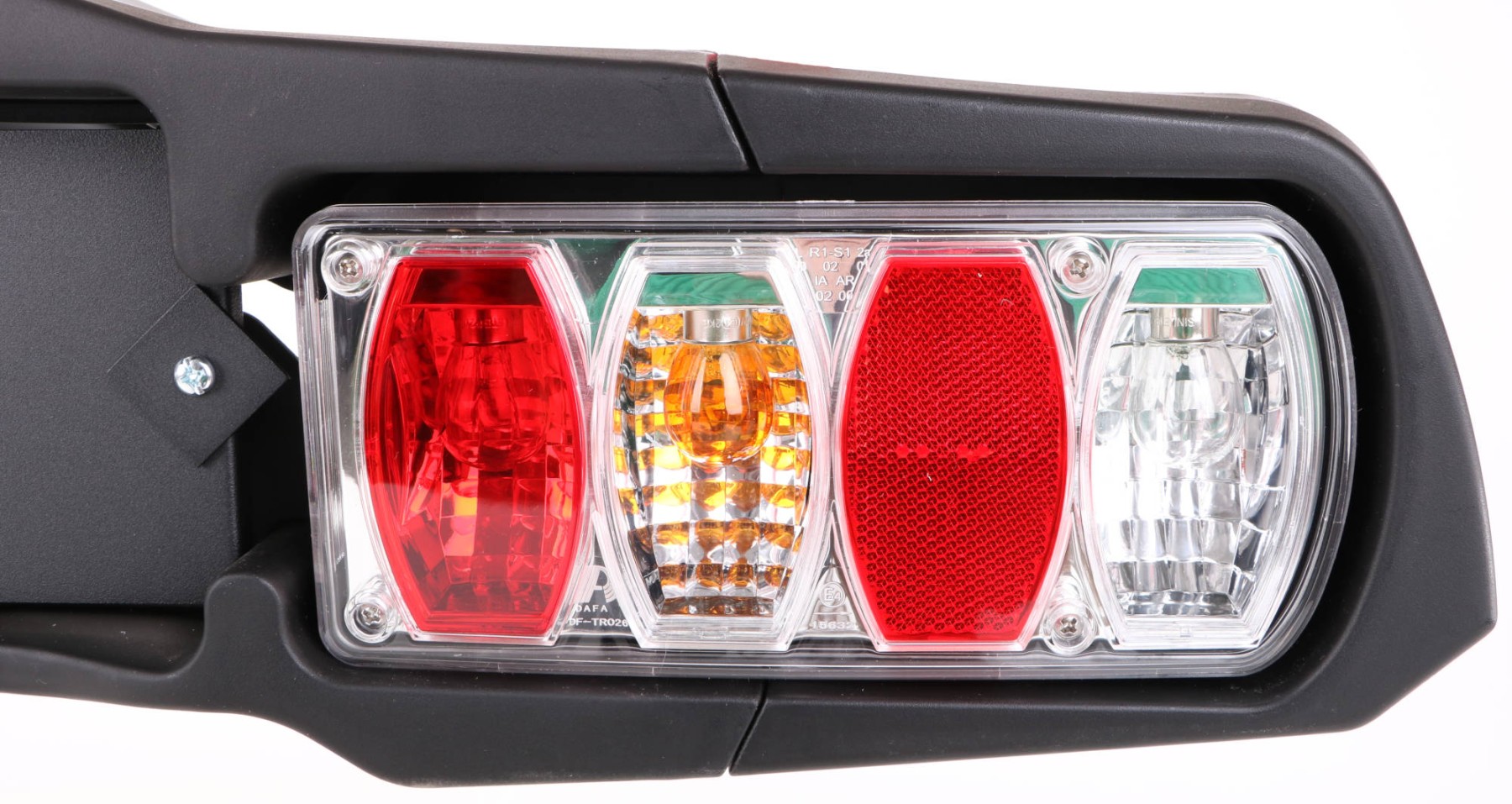

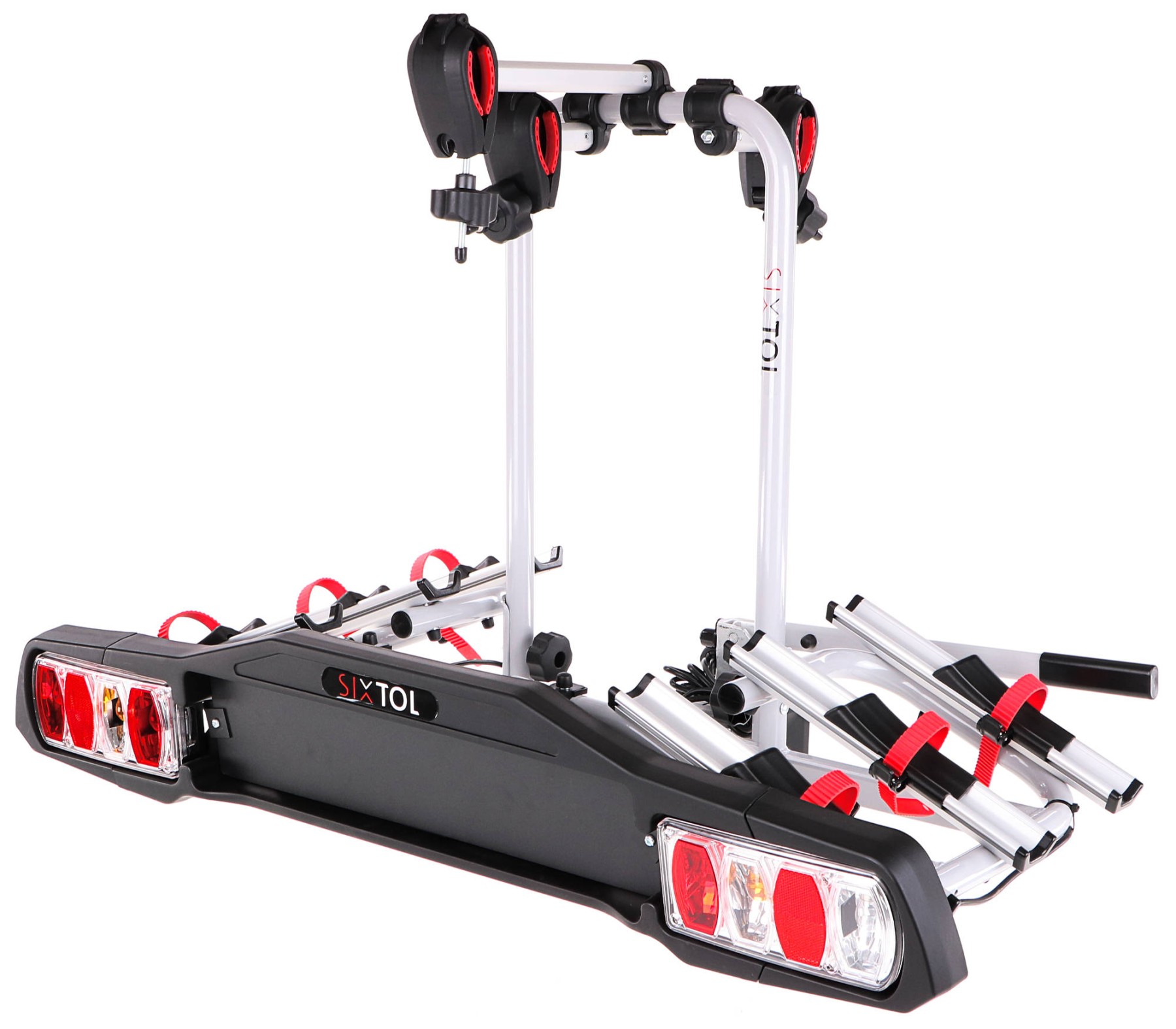

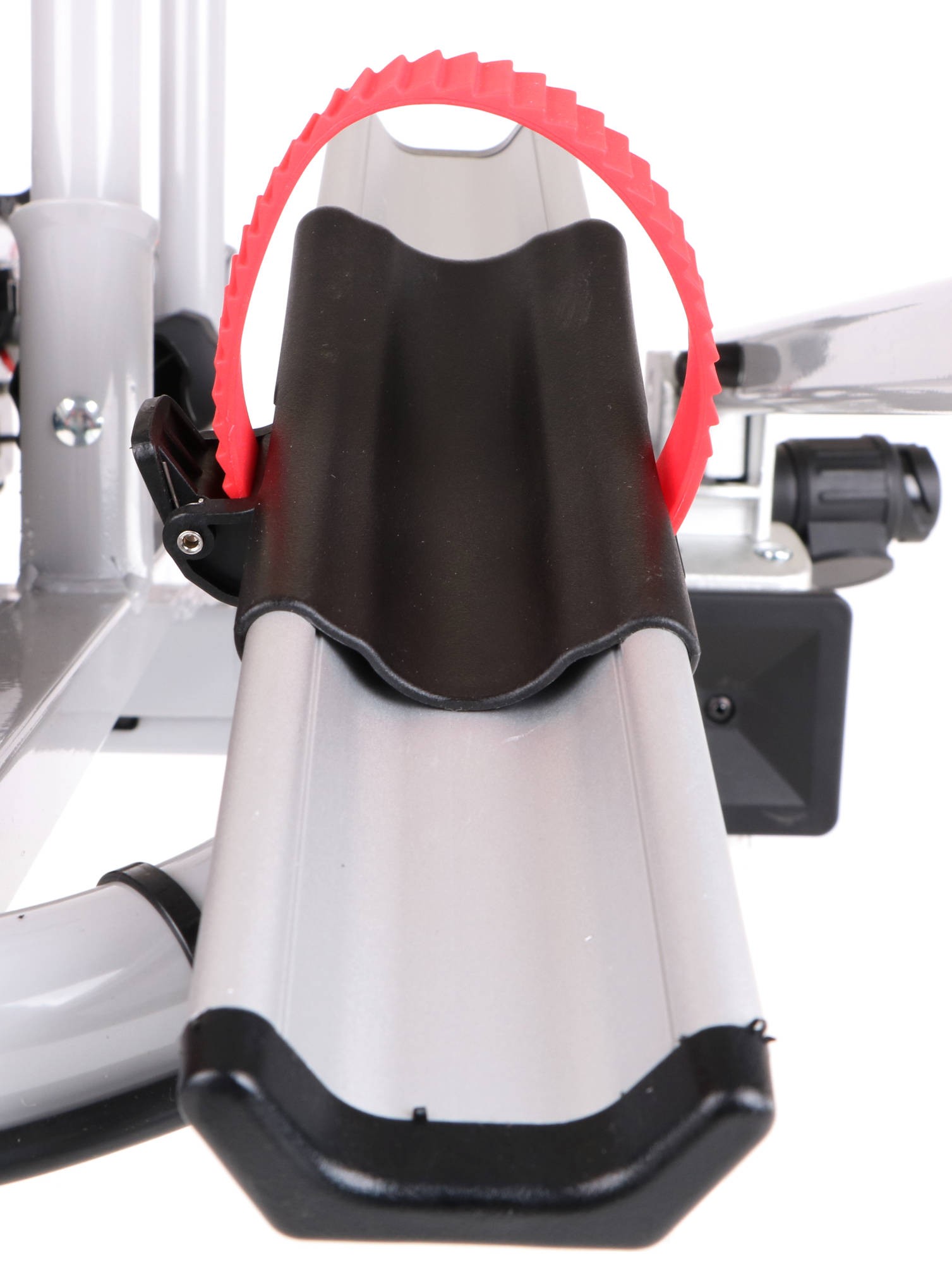

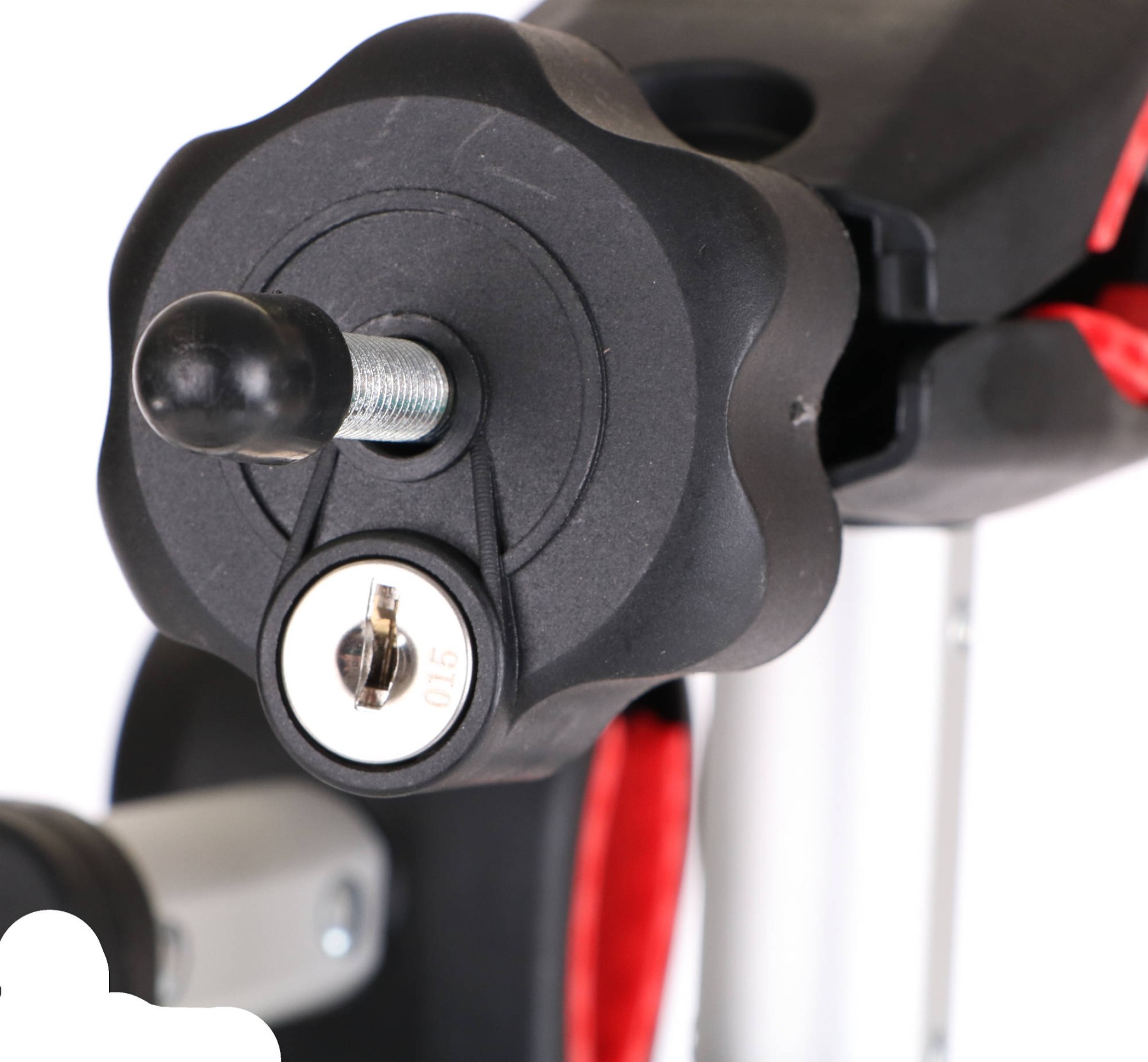

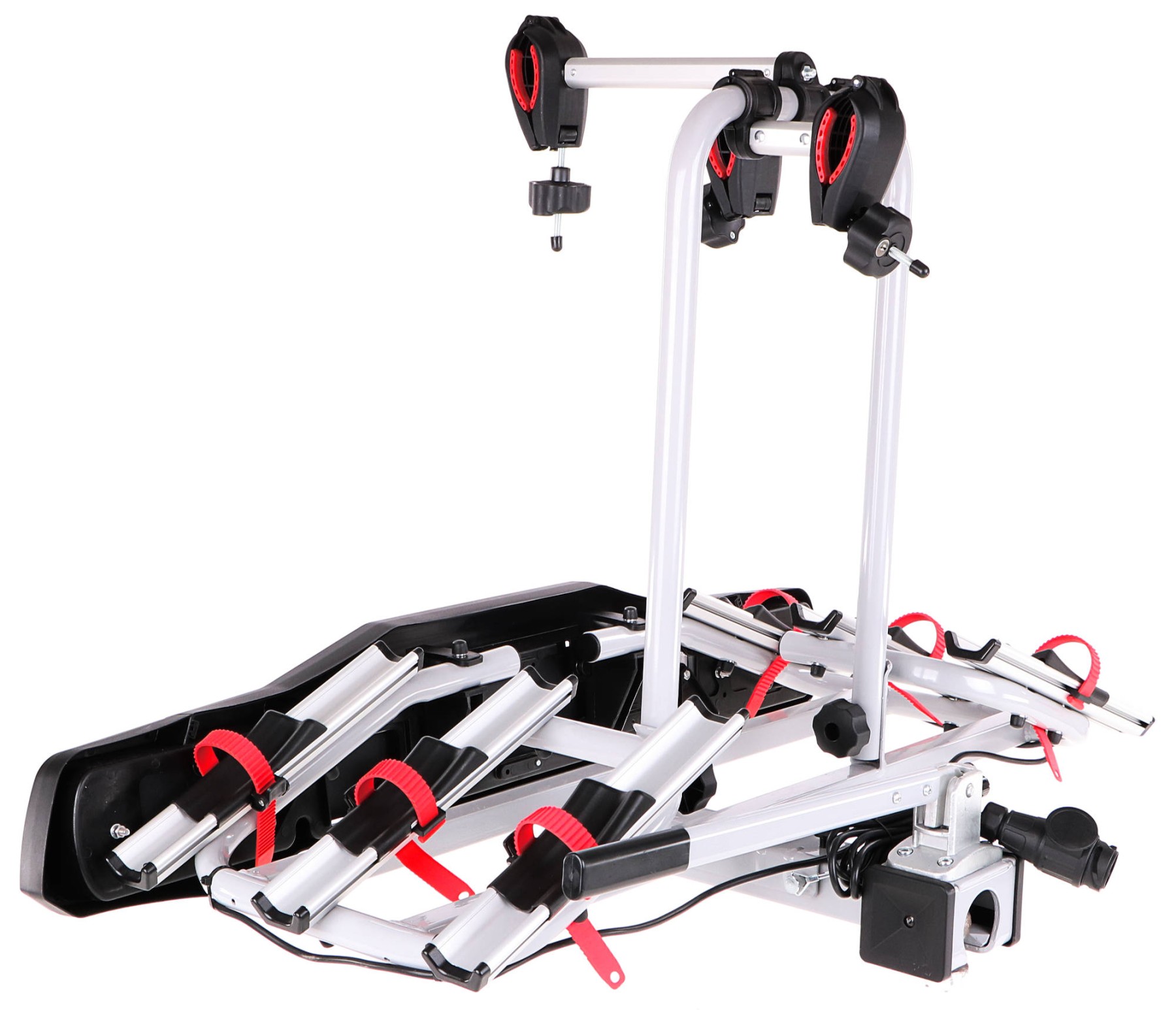

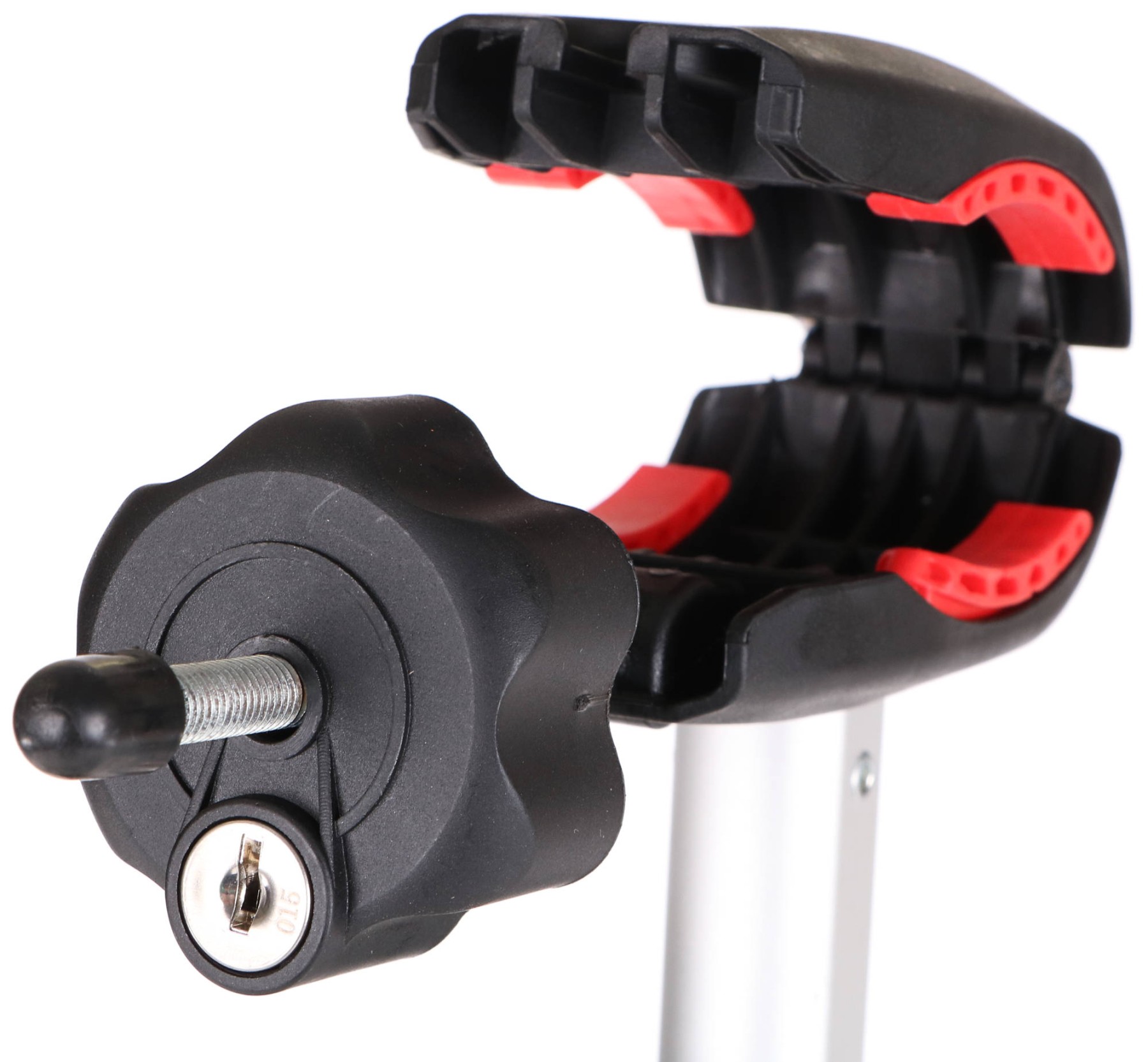

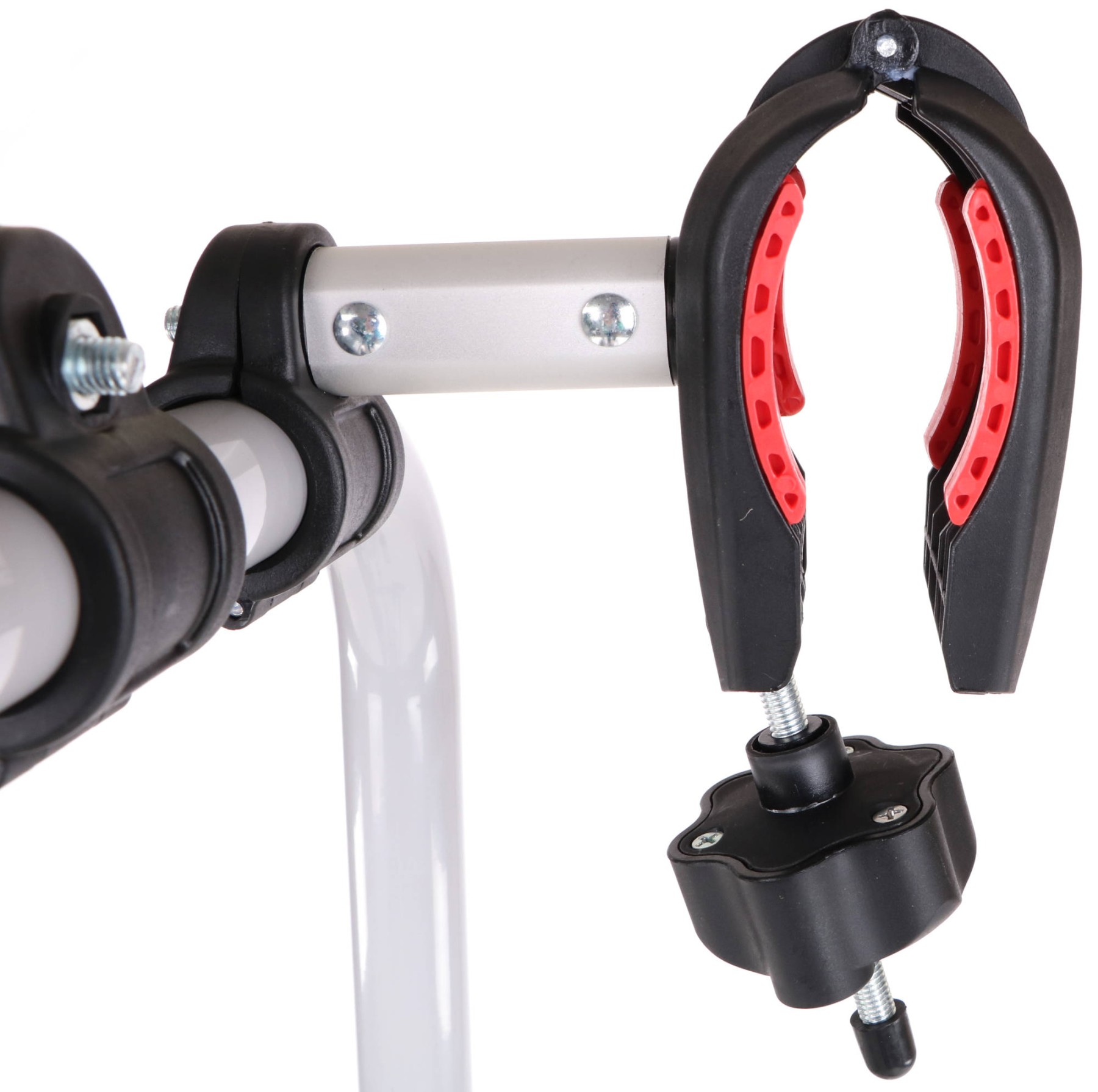

Reliable tow-ball mounted bike carrier BIKE 3 for 3 bicycles. The carrier is made of steel and aluminum. It features a simple mounting system, folding capability for trunk access, a fully illuminated panel, and a space for the vehicle's license plate. Mounting the bike to the carrier is tool-free and involves securing the frame holder and tightening straps on the wheels located on the base. The mechanism is lockable, preventing bike theft. The securing wheel for the bike must be tightly fastened to overcome the slip resistance in the locked position. The carrier is constructed from steel, with each bike base made of aluminum. It comes with an illuminated panel and a place for the license plate (license plate). The light panel is connected to the vehicle's tow-bar socket via a 13-pin connector and is equipped with complete rear lights, including license plate lighting. Despite its large size, the carrier still allows access to the trunk due to its clever design and folding capability.

Main Advantages:

• Robust construction

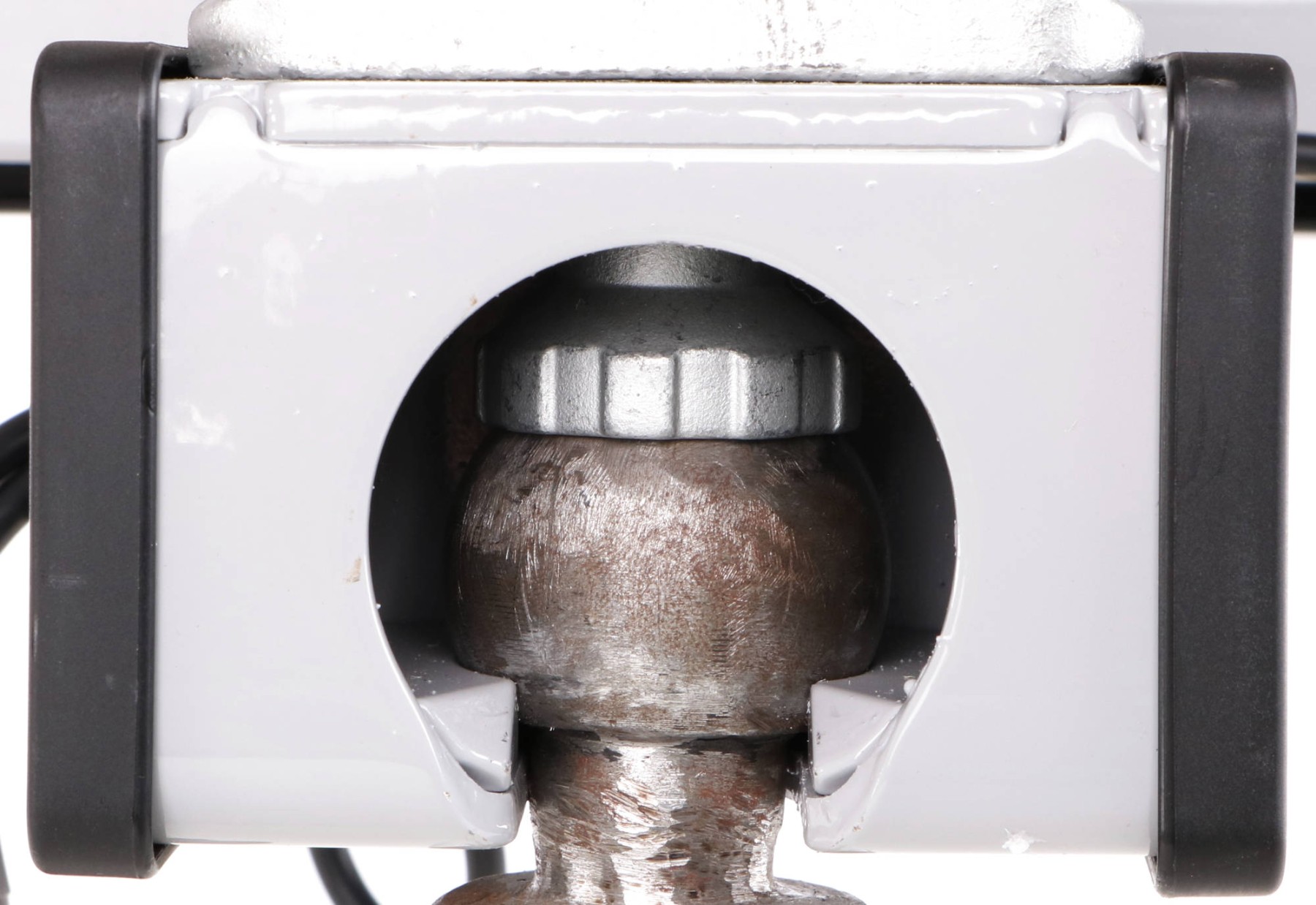

• Tool-free mounting on the ball with theft protection (ball lock)
• Quick and easy bike mounting and removal with a quick-release system

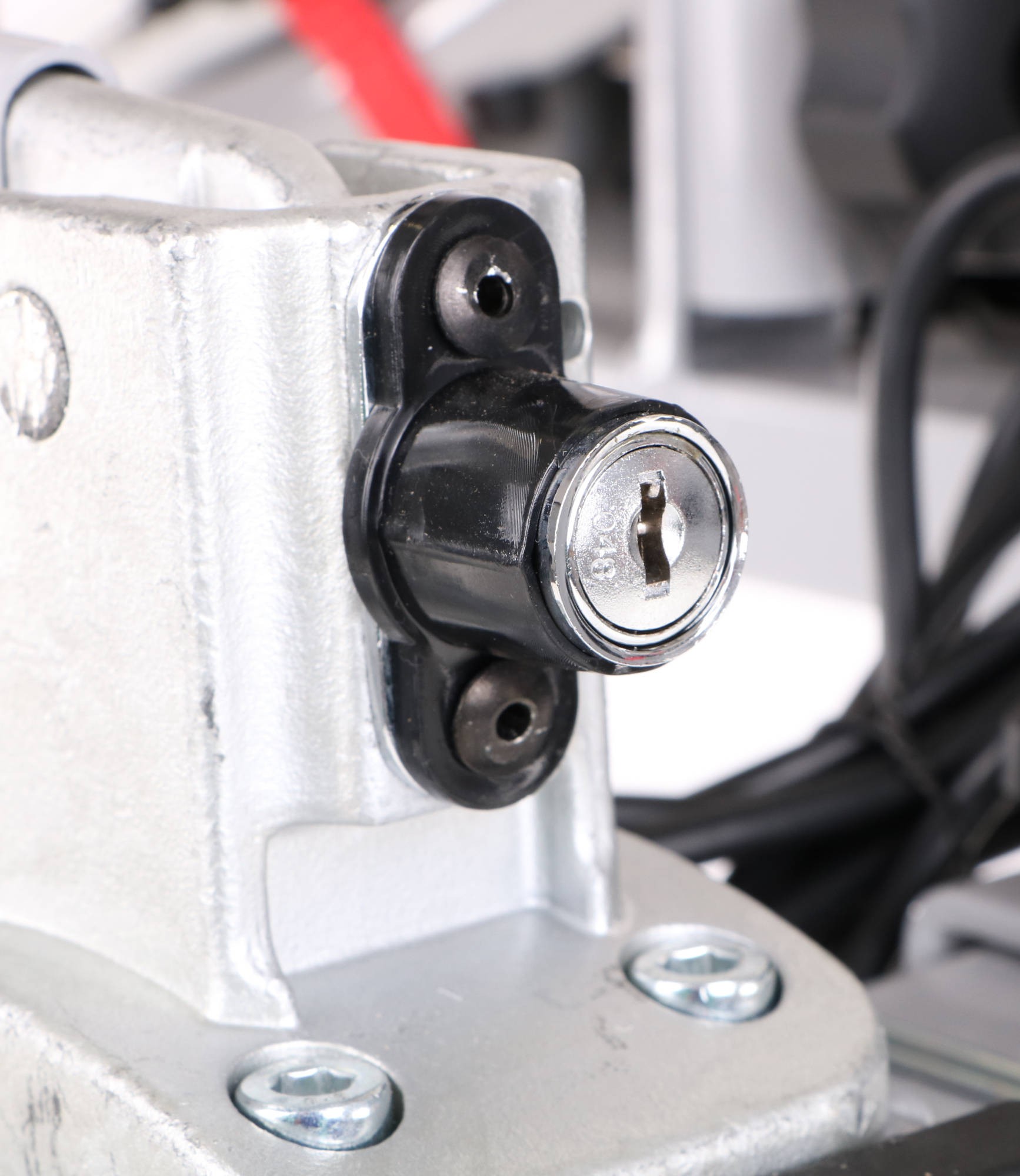

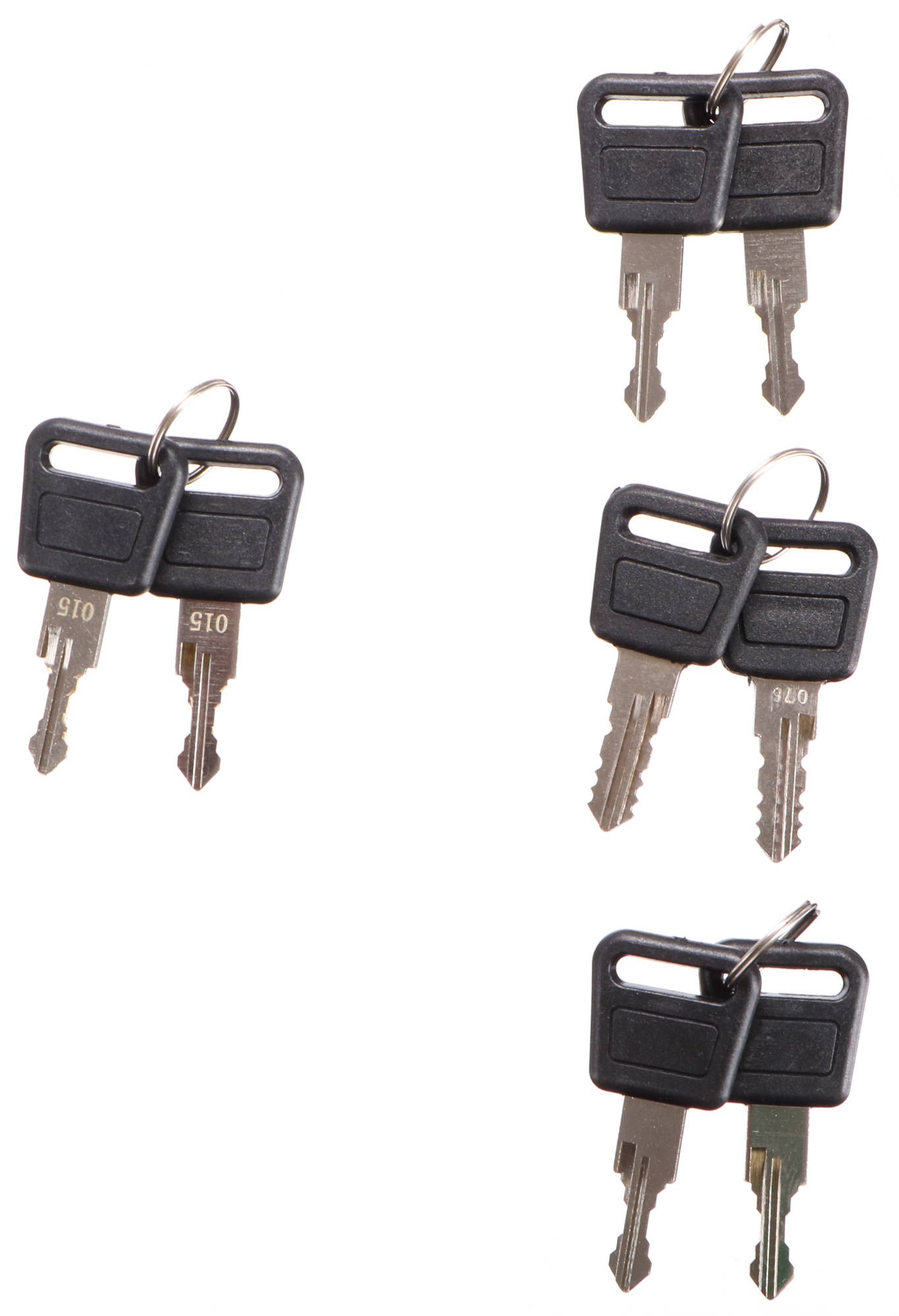

• Ability to lock bikes to the carrier – theft protection
• Clever folding system for trunk access
• Folding vertical frame for easy storage

Contents:

• Carrier and all its components
• Instruction manual in Czech

Note:

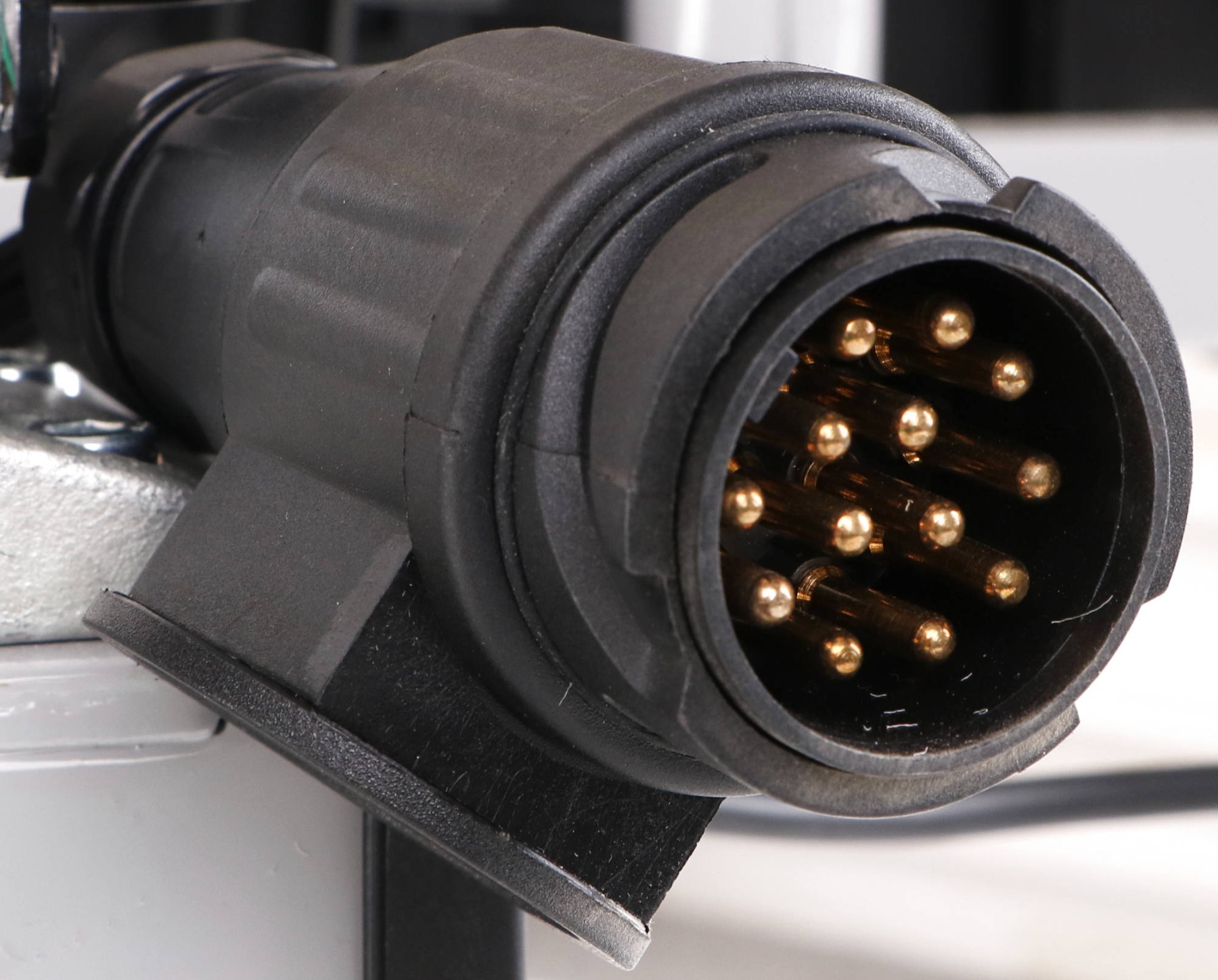

• The carrier has a 13-pin plug. If your car has a 7-pin socket, you will need a 7 to 13 pin adapter.

Suitable for these types of bikes:

• Mountain bikes
• Cross bikes
• Trekking bikes
• Road bikes
• BMX and freestyle bikes
• Downhill bikes
• Electric bikes
• Children’s bikes

Technical Specifications:

• Carrier for 3 bikes mounted on a 50 mm tow ball
• Maximum load capacity: 45 kg
• Carrier dimensions: 980 x 580 x 210 mm
• Bike locking: yes
• Carrier locking: yes
• Bike fixation: front, rear wheel, and frame
• Carrier lights connected to a type E4 13-pin socket
• Max. tire width: 60 mm
• Max. wheelbase: 100 cm
• Frame diameter: up to 39 x 50 mm (w x h)
• Carrier frame material: steel
• Carrier rail material: aluminum
• Plastic components material: durable plastic
• Certification: ATEST 8SD – approved by the Czech Ministry of Transport
• Carrier weight: 20 kg

Tip:

• This carrier can also be used for transporting electric bikes, provided the maximum load capacity is not exceeded. Reducing the weight of the electric bike can be achieved by removing the battery and storing it in the car.
